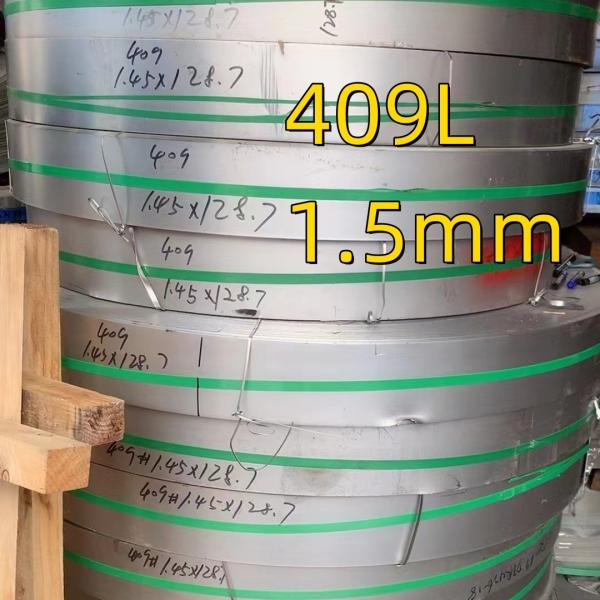

SUH409L Stainless Steel Coil Strip Width 120 mm Thickness 2.00 mm
Used For Exhaust Pipe
Stainless Steel Coil 444/443/441/436/439/409L
| Grade | 200 Series | 300 Series | 400 Series |
| 201/202 | 304/316L/321/310S/317L | 409L/410S/420/430/441/439 |
| Standard | ASTM, JIS, GB, DIN |
| Brand | TISCO, LISCO, JISCO, BAOSTEEL, ZPSS, SKS |
| Cold Rolled Stainless Steel Sheet/Coil Size | Thick: 0.4-5.0mm
(0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0mm) |
| Width: 1000-2000mm (1000/1219/1250/1500/1800/2000mmx Length) |
| Hot Rolled Stainless Steel Plate/Coil Size | Coils Thik: 3.0-12.0mm (3/4/5/6/8/10/12mm); Plate Thick:3-120mm
(3/4/5/6/8/12/14/16...120mm) |
| Width: 1000-2000mm (1000/1219/1250/1500/1800/2000mmx Length) |
| Surface | NO.1/2B/BA/8K/Hairline/NO.4 Mirror/Perforated/Checkered /Anti Slip
Pattern can be customized. |
| Packing | Standard Export Package-packed with Water proof paper and wooden
pallet. To be packed strongly avoid damage during transportation,
and can be also according to the regulations and customer's
requests. |
| Delivery time | Within 10 days |
Description
Discover the versatility of 409L Steel Coil, also referred to as
UNS S40900. This stable variant of grade 409 boasts a composition
enriched with chromium, nitrogen, and carbon. Widely favored by
manufacturers, this stainless steel grade offers remarkable
adaptability across diverse applications and equipment. With its cost-effectiveness and impressive blend of corrosion and heat resistance, grade 409L
stands out as a practical solution for environments with mild
corrosive conditions. Ideal for applications prioritizing
durability and cost-efficiency, it’s the optimal choice to meet
your needs.
Features of 409L Coil:
- Corrosion resistance
- Excellent resistance to the exhaust gas, high temperature, and
atmospheric corrosion
- Good formability and excellent flexibility
- Low cost
- Durability
- 409L coil can easily withstand high and elevated temperatures
without getting damaged. However, to prove its quality and
durability there are various tests done as per the industrial norms
and regulations.
- Thus, if you have decided to buy a stainless steel coil, then buy
it from Accurate Steels only.
PRODUCT FORMS:
Sheet, Strip
SPECIFICATIONS:
ASTM A240
TYPICAL APPLICATIONS:
Automotive exhaust systems applications such as manifolds exhaust
pipes, catalytic converters, mufflers, tail pipes and other
components. Non-automotive exhaust applications such as home
heating systems, automotive thermostats and fuel filters,
electrical transformer cases, caskets and heat exchanger tubing.
CHEMICAL COMPOSITION: (ASTM A240)
| Element | UNS S40910 | UNS S40920 | UNS S40930 |
|---|
| Carbon | 0.030 max. | 0.030 max. | 0.030 max |
|---|
| Manganese | 1.00 max. | 1.00 max. | 1.00 max. |
|---|
| Sulfur | 0.020 max. | 0.020 max | 0.020 max |
|---|
| Phosphorus | 0.040 max. | 0.040 max. | 0.040 max. |
|---|
| Silicon | 1.00 max. | 1.00 max. | 1.00 max. |
|---|
| Chromium | 10.5 – 11.7 | 10.5 – 11.7 | 10.5 – 11.7 |
|---|
| Nickel | 0.50 max. | 0.50 max. | 0.50 max. |
|---|
| Nitrogen | 0.030 max. | 0.030 max. | 0.030 max. |
|---|
| Titanium | 6x(C+N) min. – 0.50 max. | 8X(C+N)min. / 0.15 – 0.50 | 0.05 min. |
|---|
| Niobium | 0.17 max. | 0.10 max. | |
|---|
| Ti + Nb | | | [0.08+8x(C+N)] min. – 0.75 max. |
|---|
MECHANICAL PROPERTIES:
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) |
|---|
| S40910 | 25 min. | 55 min | 20 min. |
|---|
| S40920 | 25 min. | 55 min. | 20 min. |
|---|
| S40930 | 25 min. | 55 min. | 20 min. |
|---|
PHYSICAL PROPERTIES:
| Density (lb./ in^2) @ RT | | 0.28 |
|---|
| Modulus of Elasticity in Tension (psi x 10^6) | | 29 |
|---|
| Specific Heat (BTU/o F/lb.) | 32 to 212 oF | 0.114 |
|---|
| Thermal Conductivity (BTU/hr/ft^2/ft) | 212oF | 14.4 |
|---|
| Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F) | 32 to 212oF | 5.84 |
|---|
| 32 to 500oF | 6.12 |
|---|
| 32 to 900oF | 6.60 |
|---|
| 32 to 1,200oF | 6.86 |
|---|
| Electrical Resistivity (micro ohms – cm) | at 70oF | 60.0 |
|---|
| Oxidation Resistance – Continuous Service(oF) | | 1450 |
|---|
FORMING:
409 stainless can be cut, blanked stretch formed and drawn without
difficulty. The formability characteristics of Type 409 are very
similar to carbon steel.
WELDING:
Type 409 is readily welded using the conventional welding
procedures common to carbon steel. These include high frequency,
resistance, gas tungsten arc (GTAW or TIG), gas metal arc (GMAW or
MIG), electron beam and laser techniques. Although autogenous welds
are common, particularly in manufacture of tubing, a filler metal,
Type 409Cb, is often employed.
CORROSION:
The corrosion resistance of 409 stainless is about the same as Type
410 stainless steel. Type 409 offers improved corrosion resistance
in comparison to carbon steels. However, its corrosion resistance
is lower in comparison to other stainless steels with higher
chromium content. Type 409 offers sufficient resistance to
corrosion and oxidation to be used in many automotive and
non-automotive applications.
Company Profile
Our company supplies kinds of stainless steel strip , high quality
and resonable price. We stick to the principle of quality first.
Our advanced manufacturing techniques ensurea we provide the
highest quality products, products, efficiently that are cost and
delivered on time.
FAQ
Q: Are you Manufacturer or Trading company?
A: We are both manufacturer and trading company in Wuxi city,
Jiangsu Province, China.we have professional processing mill with
10 years' experience.
Q: What's your main products?
A: Our main products is including Stainless Steel Strip grade in
201,301,304,304L,316L, 430, 409L 441 436L
Q:Do you provide samples ?
A3: Yes, we could offer the sample for free charge but the cost of
freight is by receiver, normally.
Why choose us?
1. With over 15 years' experience in Stainless Steel strip coil
manufacturing.
2. Competitive Price and Best Services.
3. Work with many famous brands,such as Tisco,Baosteel.
4. Strong production capacity.
5. Excellent exprience of after-sale service.
How to order
Please inform us the following information
1.Grade,Surface,Thickness,Size,Tolerance,Special request
2.Amount
3.Price Term
4.Leave your contact
If you are interested in our products, please feel free to contact
me any time! Welcome to hear from your inquiry!
